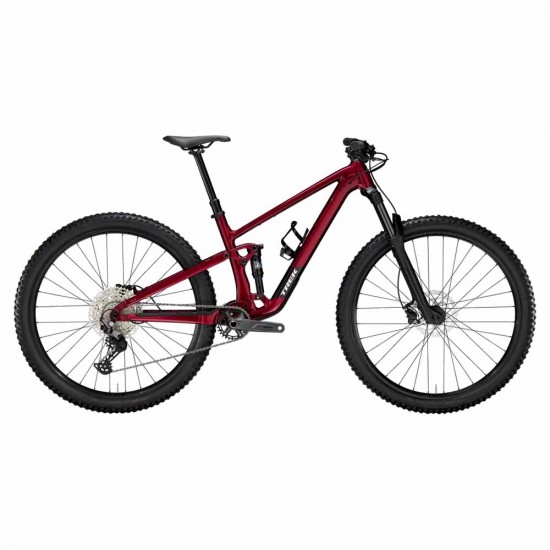

Trek Top Fuel 5 Gen 4 2025


Top Brand


Trek Top Fuel 5 Gen 4 2025
- Stock: In Stock
- Brand: Trek
- Model: SM25513
- EAN: 197216022190
Product Views: 153
1,600.00 USD
2,900.00 USD
Available Options
Discover Durable Mountain Bikes Built for Performance
Top Fuel 5 Gen 4 is a nimble alloy trail bike that's ready to hammer up climbs and hold its own on descents – all without breaking the bank. It offers 130mm of front and 120mm of rear suspension that gives you just enough squish to soak up chatter without draining your power on all-day pedal fests. It comes equipped with a RockShox suspension package and Shimano Deore groupset that gives you everything you need to rip in an economical package.
2025 TREK TOP FUEL 5 GEN 4 SPECIFICATION
Frame | Alpha Platinum Aluminum, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120mm travel BB Standard: BSA, 73mm, Threaded Tire Clearance: 2.5" Colors: Matte Mercury; Crimson |
---|---|
Fork | RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 130mm travel Travel: 130mm Spring Type: Air |
Shock | X-Fusion Pro 2, 2-position damper, 185mm x 50mm Travel: 120mm |
Bottom Bracket | Shimano BB-MT501 BSA |
Stem | Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 750mm width |
Saddle | Bontrager Verse Short, stainless steel rails |
Seatpost | Size: S, TranzX JD-YSI22, 100mm travel, internal routing, 34.9mm, 342mm length; Size: M, ML, L, XL, TranzX JD-YSI22, 170mm travel, internal routing, 34.9mm, 489mm length Type: Dropper |
Grips | Bontrager XR Trail Comp, nylon lock-on |
Rear Derailleur | Shimano Deore M6100, long cage |
Crank | Shimano MT512, 30T ring, 55mm chainline, 170mm length |
Shifters | Shimano Deore M6100, 12 speed |
Cassette | Shimano Deore M6100, 10-51, 12 speed |
Chain | Shimano Deore M6100, 12 speed |
Brakes | Shimano MT200 hydraulic disc Type: Shimano Hydraulic Disc |
Rims | Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve |
Front Hub | Bontrager alloy, 6-bolt, Boost110, 15mm thru axle |
Rear Hub | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
Tires | Size: S, Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40''; Size: M, ML, L, XL, Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40'' |
Disc Rotors | Shimano RT26, 6-bolt, 180mm |
