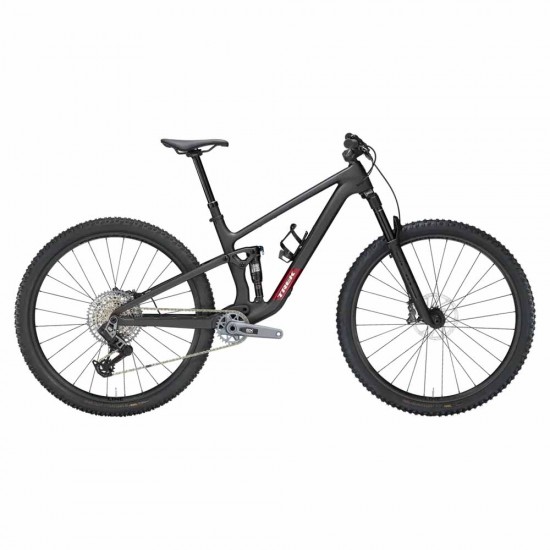

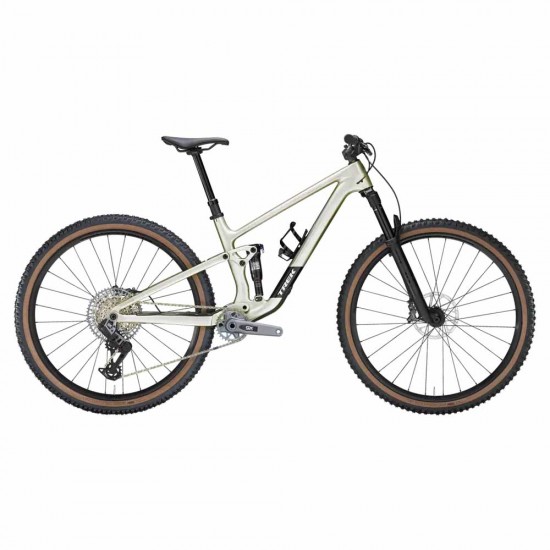

Trek Top Fuel 9.8 GX AXS Gen 4 2025

Trek Top Fuel 9.8 GX AXS Gen 4 2025
Trek Top Fuel 9.8 GX AXS Gen 4 2025
Top Brand
Trek Top Fuel 9.8 GX AXS Gen 4 2025
Trek Top Fuel 9.8 GX AXS Gen 4 2025
Trek Top Fuel 9.8 GX AXS Gen 4 2025
  • Stock: In Stock
  • Brand: Trek
  • Model: SM25516
  • EAN: 197216022497
Product Views: 156
Based on 0 reviews. 1 Write a review
4,300.00 USD
7,700.00 USD

Available Options

Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Ready for Anything – Explore Our Mountain Bike Collection

Top Fuel 9.8 GX AXS Gen 4 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents. It gives you the confidence you want through roots and rocks, thanks to a 120mm/130mm RockShox suspension package with a Pike Select+ fork and Deluxe Ultimate shock. Plus, you can shift easy even under load with a SRAM GX Eagle AXS wireless transmission.

2025 TREK TOP FUEL 9.8 GX AXS GEN 4 SPECIFICATION

Frame OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120mm travel
BB Standard: BSA, 73mm, Threaded
Hanger Standard: UDH
Tire Clearance: 2.5"
Colors: Matte Dark Web; Lunar Silver
Fork RockShox Pike Select+, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 130mm travel
Travel: 130mm
Spring Type: Air
Shock RockShox Deluxe Ultimate RCT, 185mm x 50mm
Travel: 120mm
Bottom Bracket SRAM DUB MTB Wide, 73mm, BSA threaded
Saddle Verse Short Comp, steel rails, 145mm width
Seatpost Size: S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length;
Size: M, ML, L, XL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 450mm length
Type: Dropper
Grips Bontrager XR Trail Elite, nylon lock-on
Rear Derailleur SRAM GX Eagle AXS, T-Type
Crank SRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length
Shifters SRAM AXS POD
Cassette SRAM Eagle XS-1275, T-Type, 10-52, 12 speed
Chain SRAM GX Eagle, T-Type, 12 speed
Brakes SRAM Level Bronze 4-piston hydraulic disc
Type: SRAM Level Hydraulic Disc
Rims Front: Size: S, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5'';
Size: M, ML, L, XL, Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'', Rear: Size: S, Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5'';
Size: M, ML, L, XL, Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
Spokes 14 g stainless steel, black
Tires Size: S, Bontrager Gunnison RSL XT, Tubeless Ready, triple compound, aramid bead, 120 tpi, 27.5x2.40'';
Size: M, ML, L, XL, Bontrager Montrose RSL XT, Tubeless Ready, triple compound, aramid bead, 120 tpi, 29x2.40'';
Size: M, ML, L, XL, Bontrager Gunnison RSL XT, Tubeless Ready, triple compound, aramid bead, 120 tpi, 29x2.40''
Disc Rotors SRAM CenterLine, 6-bolt, round edge, 180mm
